وصف المنتج

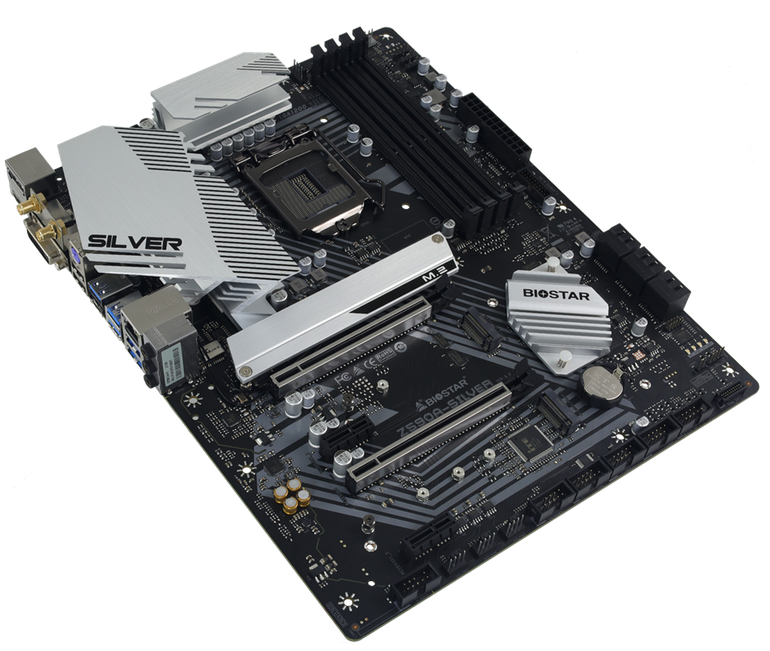

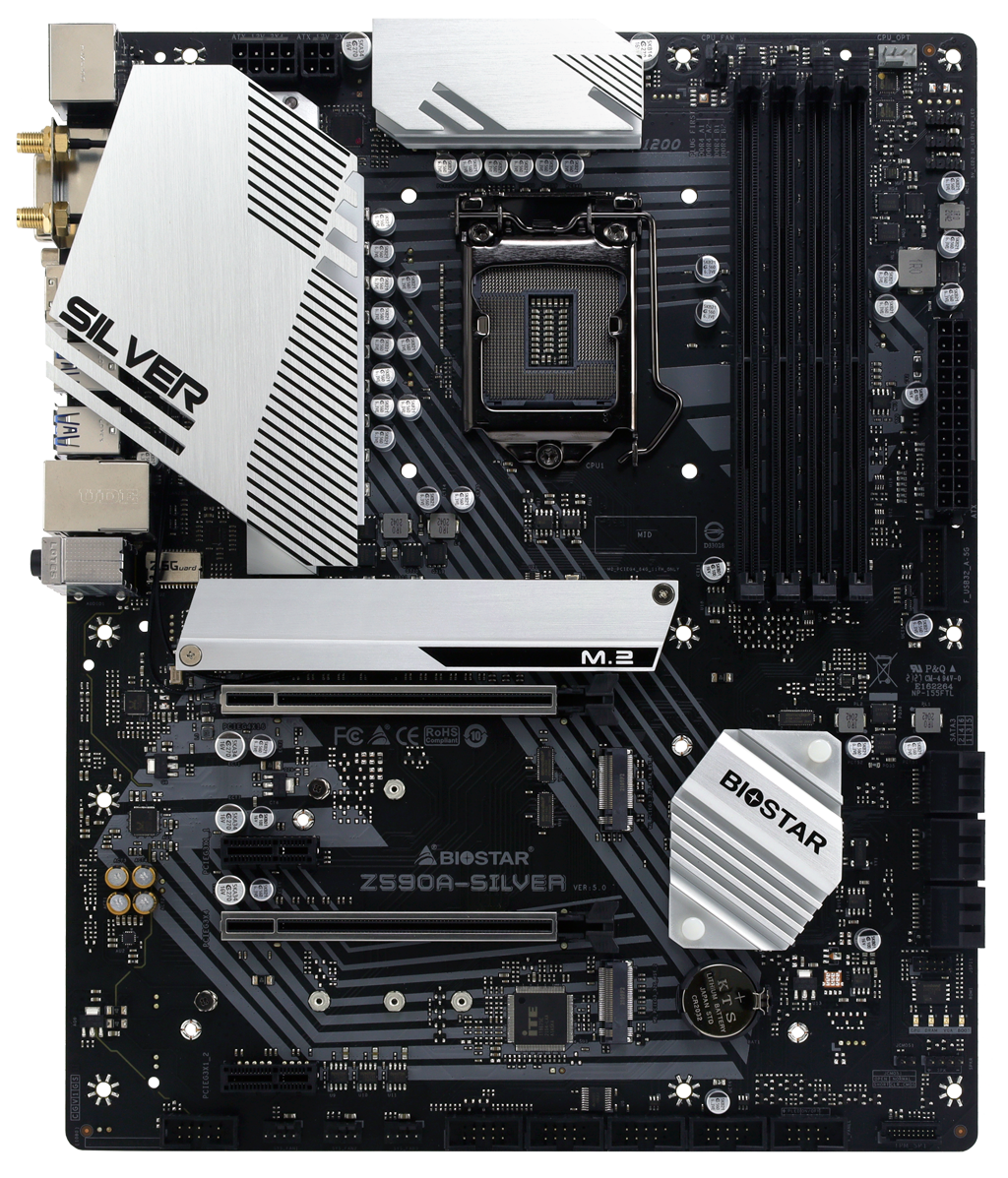

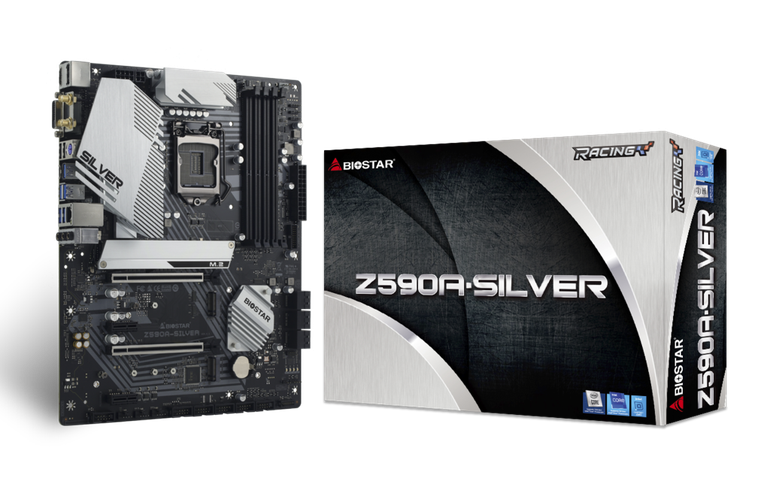

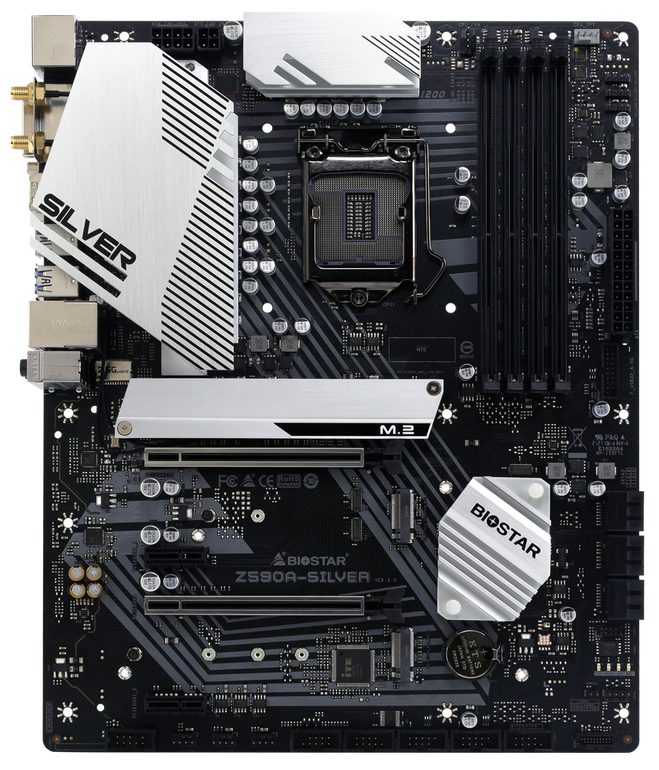

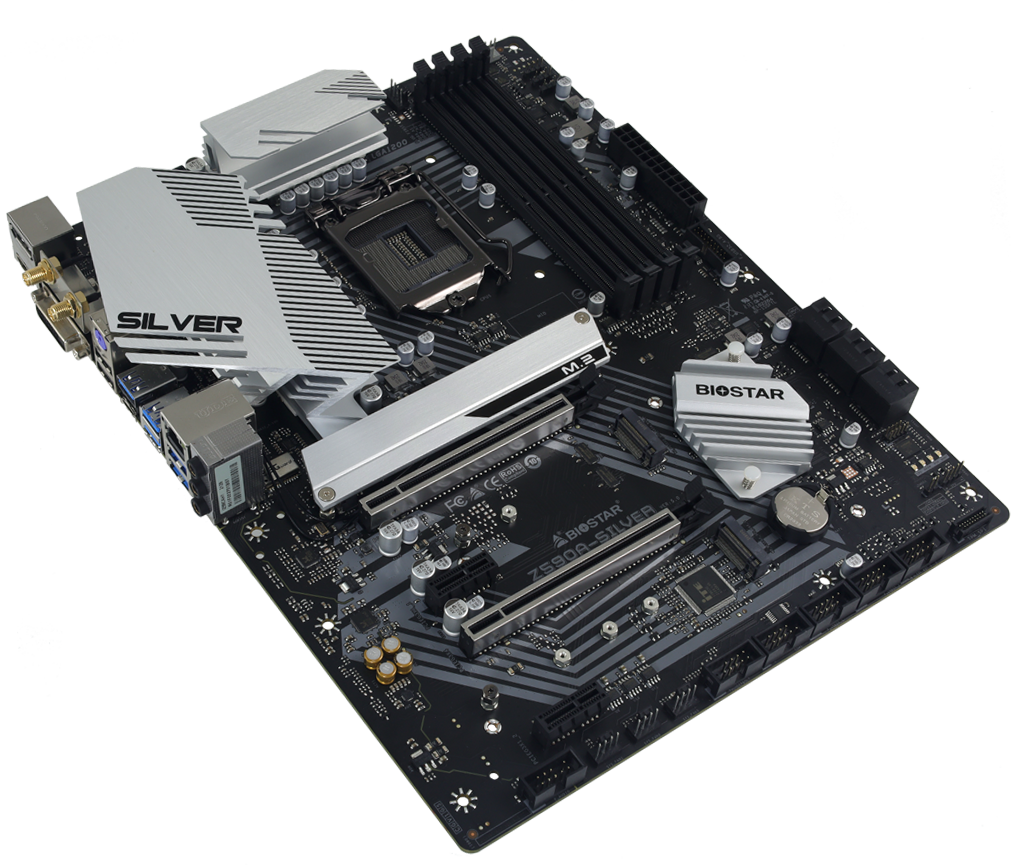

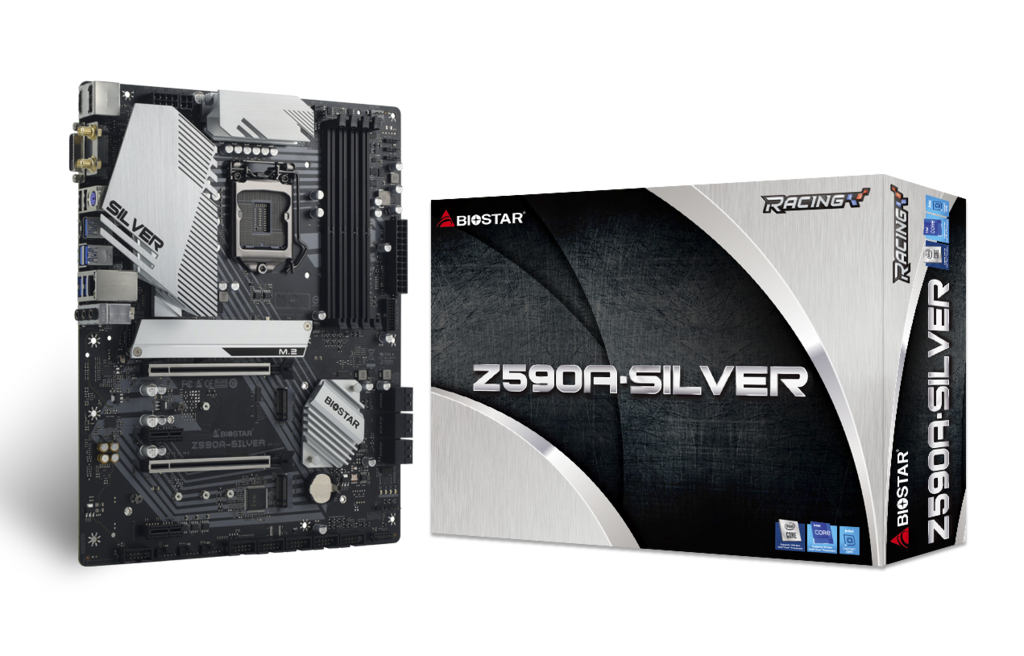

نقدم لكم منتجنا الجديد مذربورد Biostar Z590A-SILVER، الخيار المثالي لعشاق الحواسيب، واللاعبين، ومبدعي المحتوى الذين يقدرون الأداء العالي ويسعون للحصول على تجربة حاسوبية استثنائية.

n

مواصفاتها:

n

ChipsettIntel Z590

n

CPU SUPPORTtSupport for 10th/ 11th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package

n

• Please refer to www.biostar.com.tw for CPU support list.

n

MEMORYtSupports Dual Channel DDR4 5000+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133

n

4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory

n

Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module

n

Support Intel Extreme Memory Profile (XMP) memory modules

n

• Please refer to www.biostar.com.tw for Memory support list.

n

INTEGRATED VIDEOtBy CPU model

n

Supports DX12

n

Supports HDCP

n

STORAGEt-- Total supports 3 x M.2 socket and 6 x SATA III (6Gb/s) ports

n

6 x SATA III Connector (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel® Rapid Storage Technology

n

1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY):

n

Supports M.2 Type 2280 SSD module

n

Supports PCIe 4.0 x4 (64Gb/s)

n

Support 11th Gen processor only

n

1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_1):

n

Supports M.2 Type 2260/ 2280 SSD module

n

Supports PCI-E 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD

n

Supports Intel Rapid Storage Technology and Intel Optane Technology

n

1 x M.2 (M Key) Socket (M2_PCIEG3_32G_RST_2):

n

Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module

n

Supports PCIe 3.0 x4 (32Gb/s)

n

Supports Intel Rapid Storage Technology and Intel Optane Technology

n

• M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen Rocket Lake-S CPU only.

n

• When using SATA SSD module on M.2 slot(M2_PCIEG3_32G_SATA_RST_1), the SATA_6 connector will be disabled.

n

LANtRealtek RTL8125B

n

10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

n

AUDIO CODECtALC1220

n

7.1 Channels, High Definition Audio, Hi-Fi(Front)

n

USBt1 x USB 3.2 (Gen2x2) Type-C port (1 on rear I/O)

n

2 x USB 3.2 (Gen2) ports (2 on rear I/Os)

n

5 x USB 3.2 (Gen1) ports (3 on rear I/Os and 2 via internal header)

n

6 x USB 2.0 ports (2 on rear I/Os and 4 via internal header)

n

EXPANSION SLOTt2 x PCIe 3.0 x1 Slot

n

1 x PCIe 4.0 x16 Slot (x16 mode)

n

1 x PCIe 3.0 x16 Slot (x4 mode)

n

• According to different CPUs will have different speeds.

n

• PCIe 4.0 speed only for INTEL 11th Gen CPUs.

n

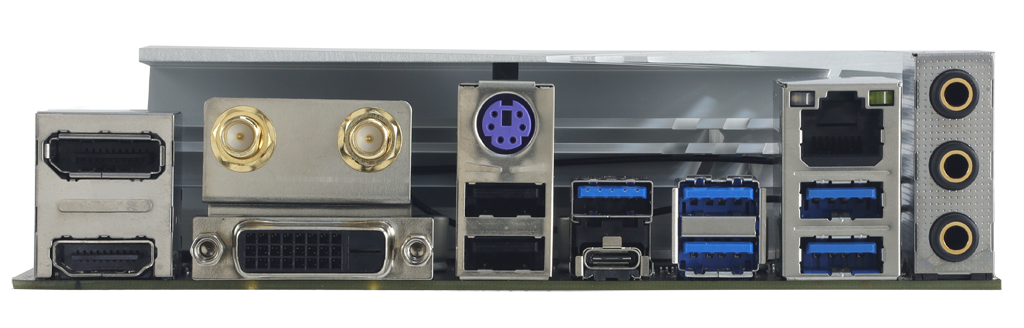

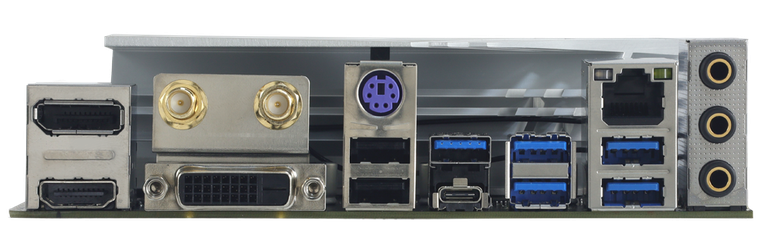

REAR I/Ot2 x WIFI Antenna Ports

n

1 x PS/2 Keyboard/ Mouse Port

n

1 x HDMI Port (HDMI2.0)

n

1 x DP Port

n

1 x DVI-D Port

n

1 x USB 3.2 (Gen2x2) Type-C Port

n

2 x USB 3.2 (Gen2) Ports

n

3 x USB 3.2 (Gen1) ports

n

2 x USB 2.0 ports

n

1 x 2.5 GbE LAN port

n

3 x Audio Jack

n

INTERNAL I/Ot6 x SATA III Connectors (6Gb/s)

n

1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi

n

2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)

n

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

n

1 x 4-Pin Power Connector

n

1 x 8-Pin Power Connector

n

1 x 24-Pin Power Connector

n

1 x CPU Fan Connector

n

1 x CPU water cooling connector (CPU_OPT)

n

3 x System Fan Connectors

n

1 x Front Panel Header

n

1 x Front Audio Header

n

1 x Internal Stereo Speaker Header

n

1 x Clear CMOS Header

n

1 x COM Port Header

n

1 x TPM Header

n

1 x Thunderbolt 3 Header

n

2 x LED Headers (5V)

n

1 x LED Header (12V)

n

• M.2 (E key) Wi-Fi card is not provided

n

H/W MONITORINGtCPU / System Temperature Monitoring

n

CPU / System Fan Monitoring

n

Smart / Manual CPU Fan Control

n

System Voltage Monitoring

n

DIMENSIONtATX Form Factor Dimension: 30.5 cm x 24.4cm ( W x L )

n

OS SUPPORTtSupports Windows 10(64bit) / 11(64bit)

n

※Biostar reserves the right to add or remove support for any OS with or without notice.

n

BUNDLE SOFTWAREtRacing GT Utility

n

BullGuard

n

ACCESSORIESt4 x SATA Cable

n

1 x I/O Shield

n

1 x DVD Driver

n

1 x User Manual

n

FEATUREStVIVID LED DJ

n

M.2 Cooling Protection

n

Tweak Tech

n

BIO-FLASHER

n

A.I FAN

n

LED ROCK ZONE

n

RGB Memory Sync

n

BIOS EZ Mode /Advanced Mode

n

Intel Optane technology

n

تعد هذه المذربورد مثالية لبناء أجهزة الألعاب والحواسيب ذات الأداء العالي، حيث تدعم أحدث معالجات Intel وتوفر مميزات هامة، مثل: تبريد M.2 وتخصيص إضاءة RGB وخيارات BIOS لضبط أداء النظام، مما يجعل تجربة الألعاب وإنشاء المحتوى وحتى استخدام التطبيقات الثقيلة أكثر سلاسة وإثارة.

n

اجعلوا تجربة الألعاب وإنشاء المحتوى والتطبيقات الثقيلة أكثر سلاسة وإثارة مع مذربورد Biostar Z590A-SILVER. اطلبوها الآن من GNM وتمتعوا بأداء عالي وابتكارات تقنية مذهلة!
