وصف المنتج

إذا كنت من محبي بناء أجهزة الكمبيوتر أو من عشاق الألعاب المحترفين الذين يبحثون عن أداء عالي الجودة، فإن مذربورد ASUS PRIME Z790-P D4 من اسوس ستكون اختيارك المثالي.

n

تتميز هذه المذربورد بأدائها المتميز وقدرتها العالية على التخصيص، مما يجعلها الخيار الأمثل للأشخاص الذين يتطلعون إلى تجربة استخدام قوية ومتطورة.

n

مواصفاتها:

n

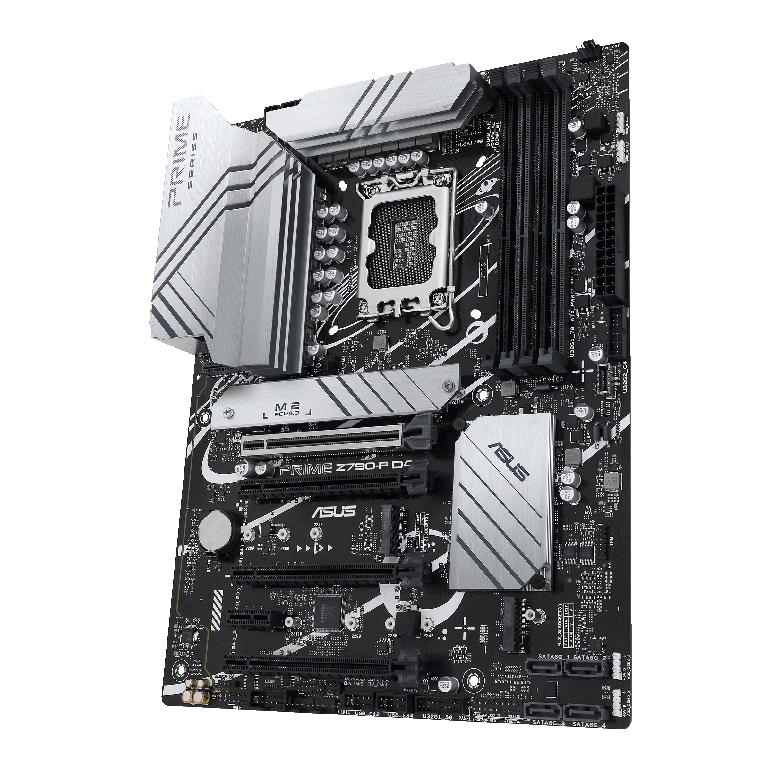

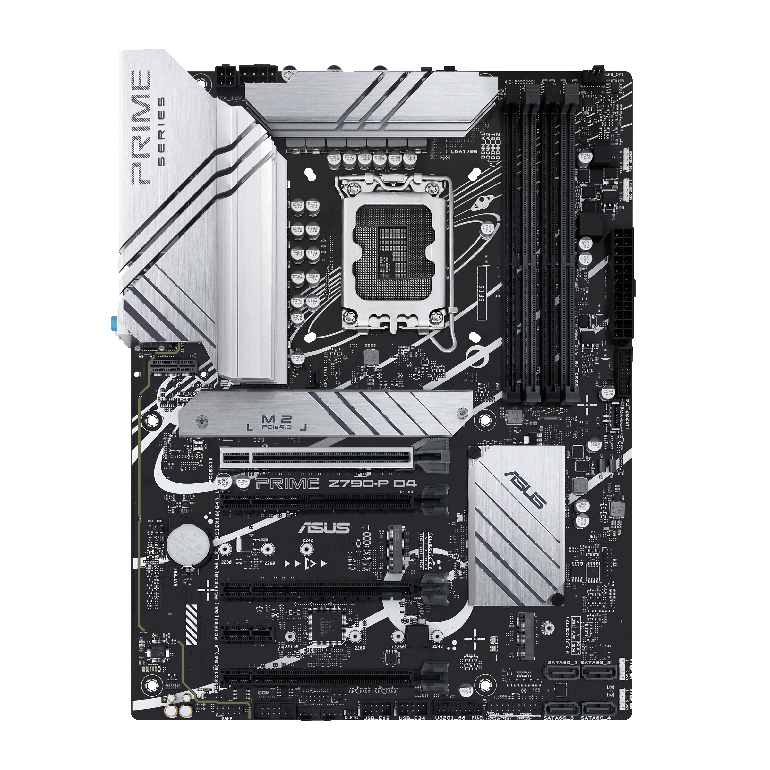

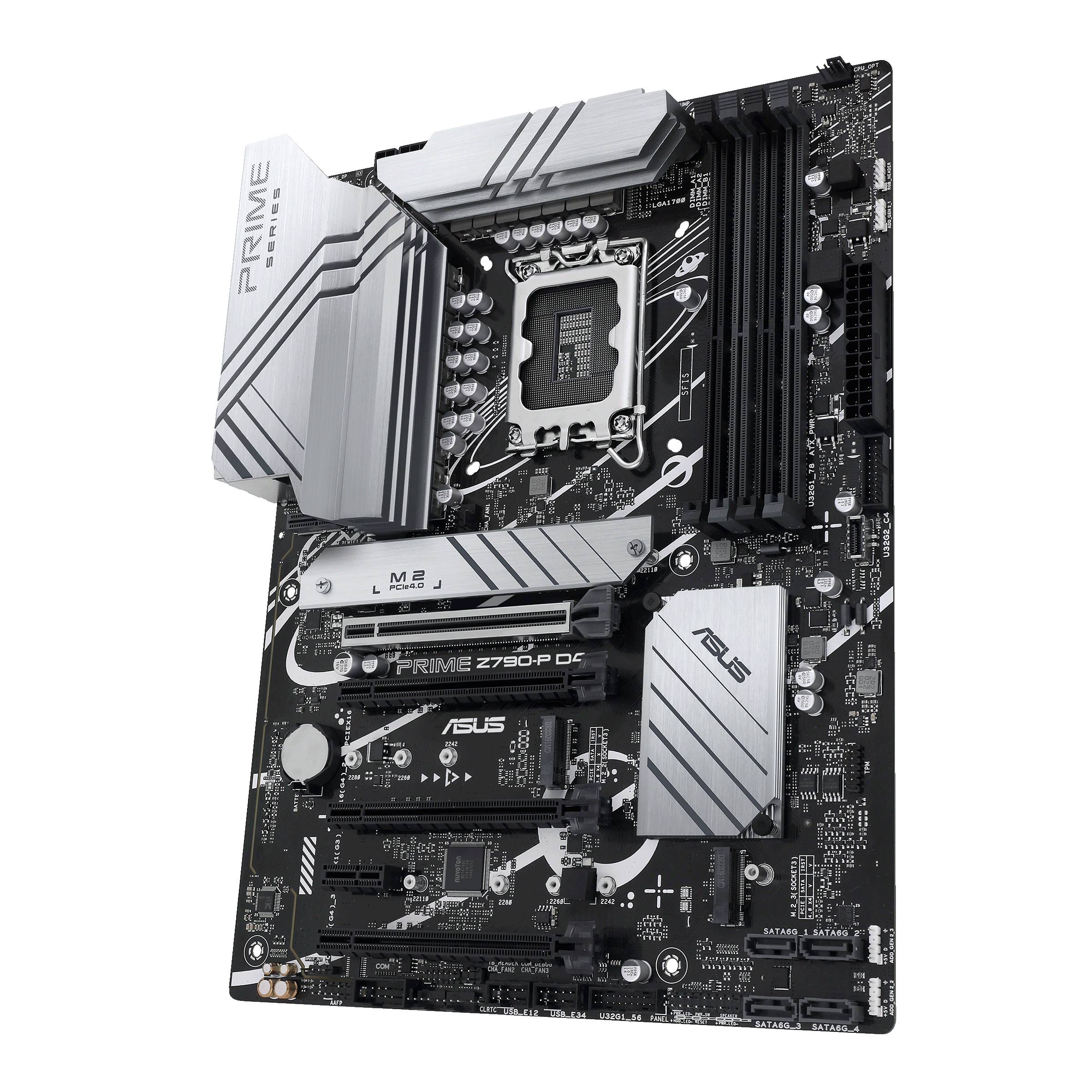

Model: PRIME Z790-P D4

n

CPU Support:

n

Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors

n

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

n

Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types

n

Chipset: Intel® Z790 Chipset

n

Memory:

n

4 x DIMM, Max. 128GB, DDR4

n

Supports various memory speeds including DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

n

Dual Channel Memory Architecture

n

Supports Intel® Extreme Memory Profile (XMP)

n

OptiMem II

n

Graphics:

n

1 x DisplayPort

n

1 x HDMI® port

n

Expansion Slots:

n

Intel® 13th & 12th Gen Processors: 1 x PCIe 5.0 x16 slot

n

Intel® Z790 Chipset: 3 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot

n

Please check the PCIe bifurcation table on the support site.

n

Storage:

n

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

n

Intel® 13th & 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

n

Intel® Z790 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports

n

Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

n

Ethernet:

n

1 x Realtek 2.5Gb Ethernet

n

Wireless & Bluetooth:

n

Vertical M.2 slot only (Key E, CNVi & PCIe)

n

Wi-Fi module is sold separately.

n

USB:

n

Rear USB (Total 8 ports)

n

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

n

1 x USB 3.2 Gen 2 port (1 x Type-A)

n

2 x USB 3.2 Gen 1 ports (2 x Type-A)

n

4 x USB 2.0 ports (4 x Type-A)

n

Front USB (Total 9 ports)

n

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

n

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

n

2 x USB 2.0 headers support 4 additional USB 2.0 ports

n

USB_E1 port, USB_E2 port, USB_E3 port, and USB_E4 port share the bandwidth.

n

USB_E5 port, USB_E6 port, USB_E7 port, and USB_E8 port share the bandwidth.

n

Audio:

n

Realtek 7.1 Surround Sound High Definition Audio CODEC

n

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

n

Supports up to 24-Bit/192 kHz playback

n

Audio Features:

n

Audio Shielding

n

Premium audio capacitors

n

Dedicated audio PCB layers

n

A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

n

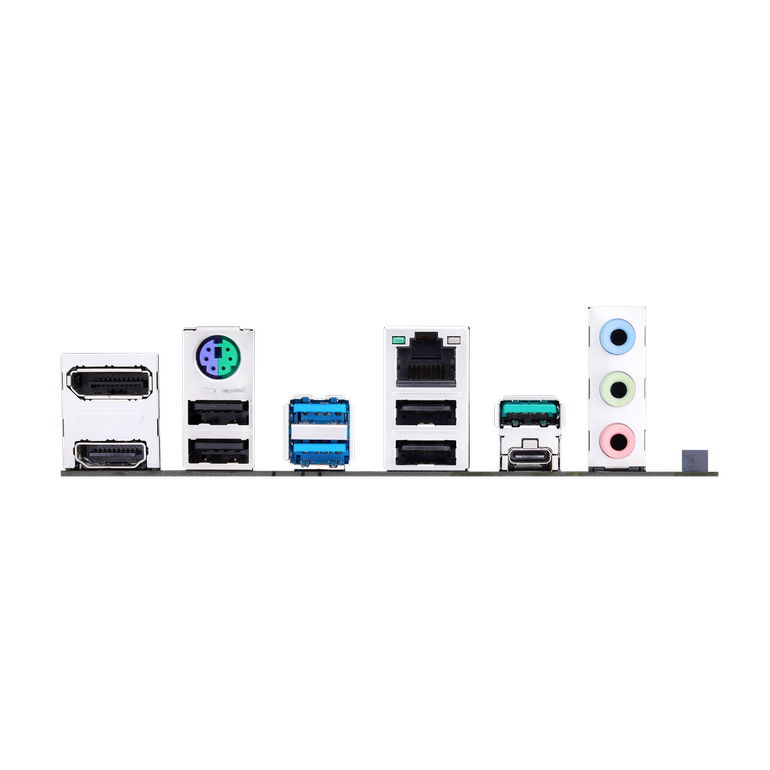

Back Panel I/O Ports:

n

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

n

1 x USB 3.2 Gen 2 port (1 x Type-A)

n

2 x USB 3.2 Gen 1 ports (2 x Type-A)

n

4 x USB 2.0 ports (4 x Type-A)

n

1 x DisplayPort

n

1 x HDMI® port

n

1 x Vertical M.2 slot (Key E)

n

1 x Realtek 2.5Gb Ethernet port

n

3 x Audio jacks

n

1 x PS/2 Keyboard/Mouse combo port

n

Internal I/O Connectors:

n

Various headers for fan and cooling-related functions

n

Power-related connectors

n

Storage-related connectors

n

USB headers

n

Miscellaneous headers for features like RGB lighting and audio

n

Special Features:

n

ASUS 5X PROTECTION III

n

DIGI+ VRM (Digital power design with DrMOS)

n

LANGuard

n

Overvoltage Protection

n

SafeSlot Core+

n

Stainless-Steel Back I/O

n

ASUS Q-Design

n

Q-DIMM

n

Q-Slot

n

Q-LED Core

n

ASUS Thermal Solution

n

Flexible M.2 heatsink

n

VRM heatsink design

n

ASUS EZ DIY

n

ProCool

n

Aura Sync

n

Aura RGB header

n

Addressable Gen 2 headers

n

Software Features:

n

ASUS Exclusive Software

n

Armoury Crate

n

Aura Sync

n

Fan Xpert 4 (with AI Cooling II)

n

Power Saving

n

AI Suite 3

n

TurboV EVO

n

PC Cleaner

n

DIGI+ VRM

n

ASUS CPU-Z

n

Norton 360 Deluxe (60 Days Free Trial)

n

WinRAR

n

UEFI BIOS

n

ASUS EZ DIY

n

ASUS CrashFree BIOS 3

n

ASUS EZ Flash 3

n

ASUS UEFI BIOS EZ Mode

n

BIOS:

n

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

n

Manageability:

n

WOL by PME, PXE

n

Accessories:

n

Cables: 2 x SATA 6Gb/s cables

n

Miscellaneous: 1 x I/O Shield, 1 x M.2 Rubber Package, 2 x Screw packages for M.2 SSD

n

Documentation: 1 x User guide

n

Operating System Support:

n

Windows® 11, Windows® 10 64-bit

n

Form Factor:

n

ATX Form Factor

n

12 inch x 9.2 inch (30.5 cm x 23.4 cm)

n

تم تصميمها خصيصًا لبناء حواسب قوية وذات أداء متميز، مما يجعلها الخيار الأمثل لأجهزة الألعاب وإنشاء المحتوى والمهام الاحترافية.

n

اطلبها الآن من متجر GNM واستمتع بأداء فائق الجودة وثقة لا مثيل لها في حاسوبك.
