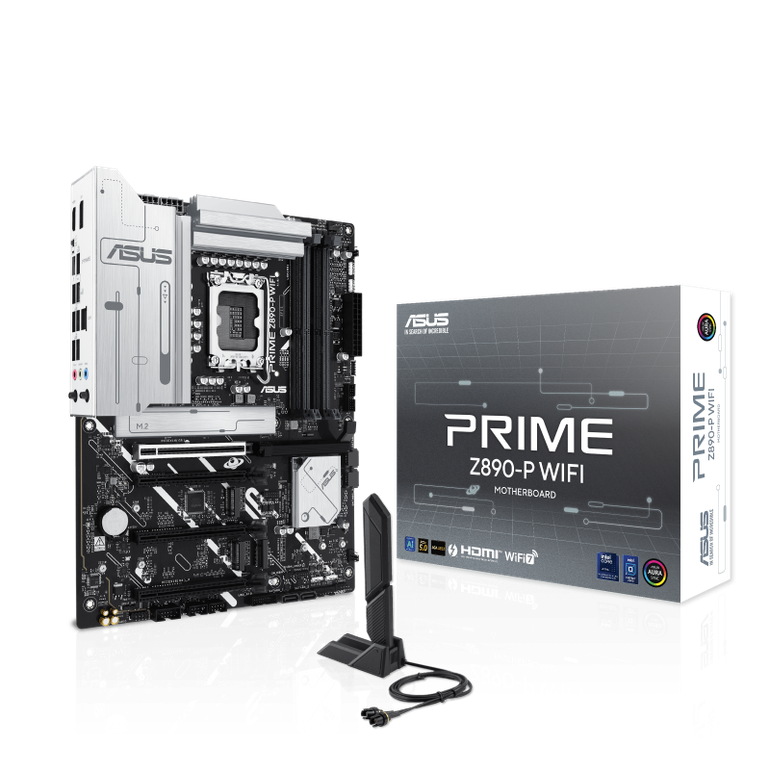

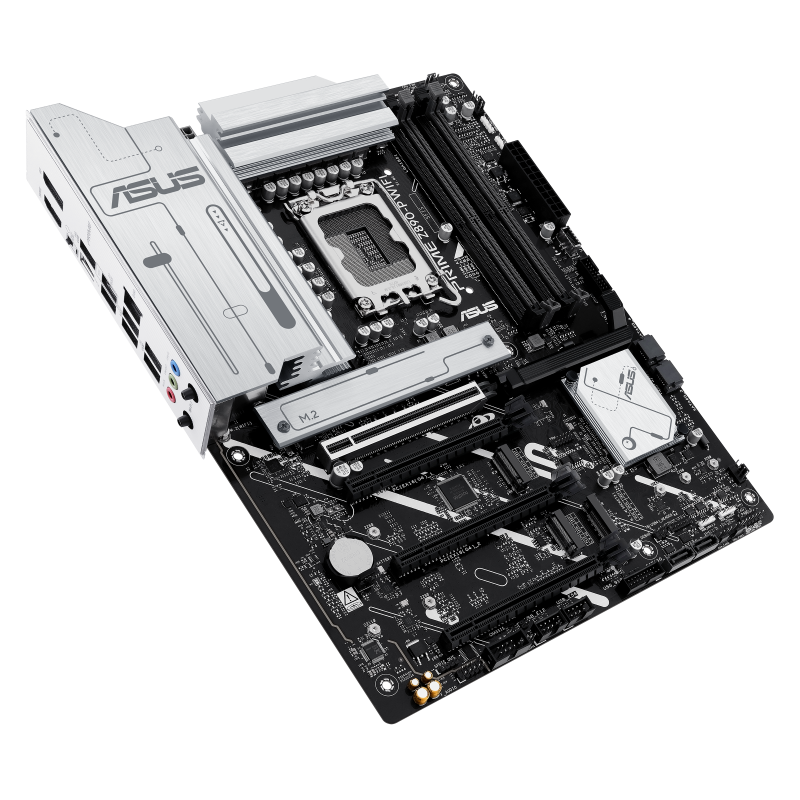

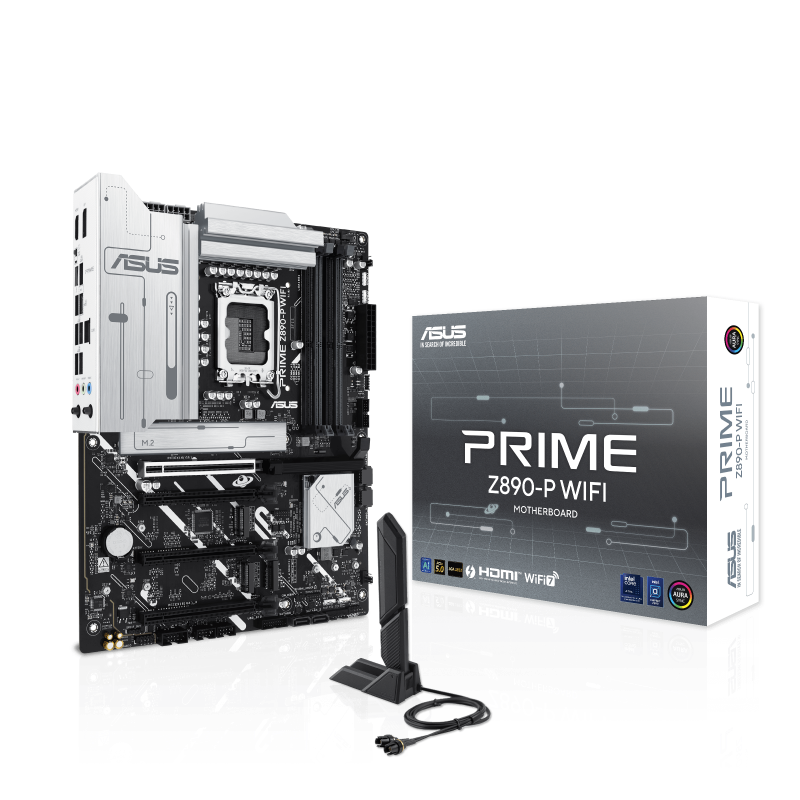

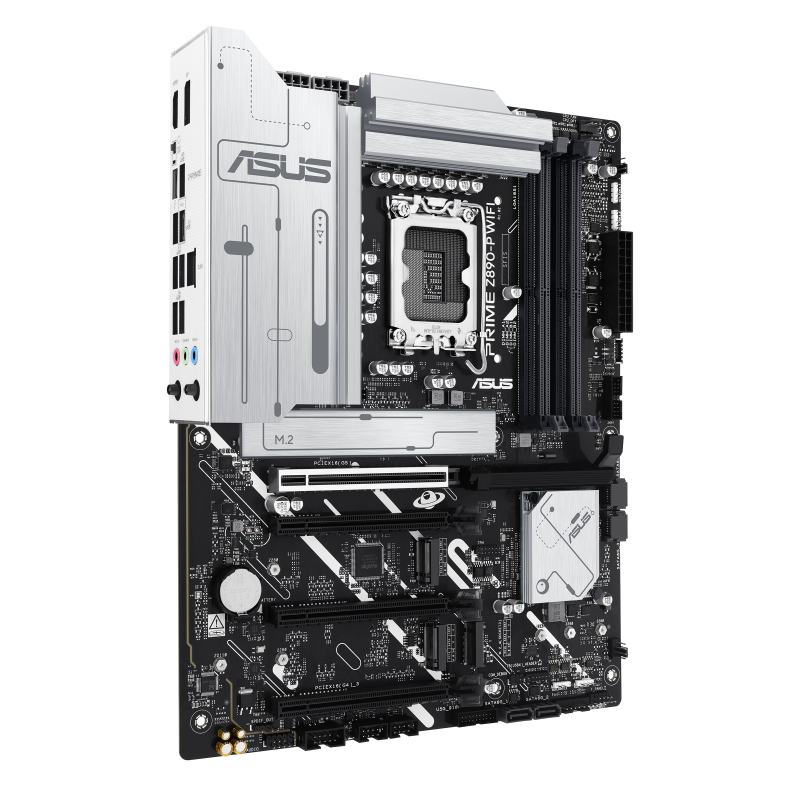

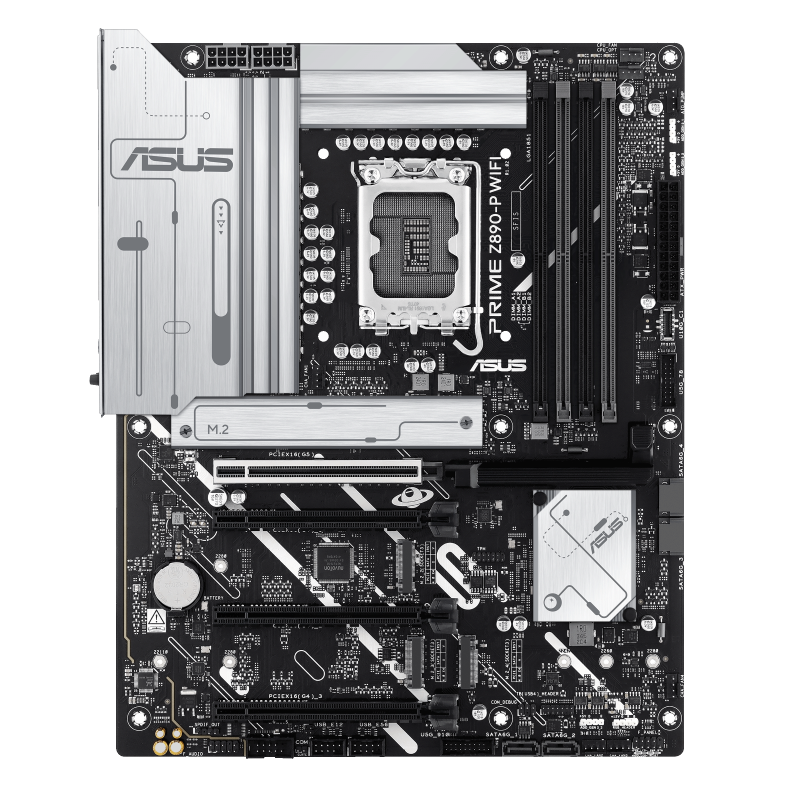

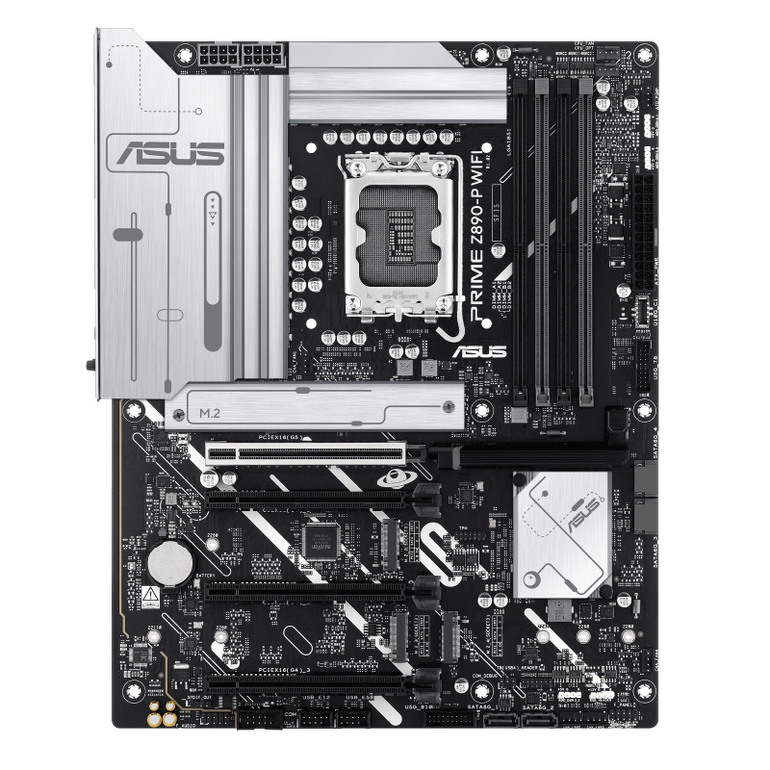

ASUS PRIME Z890-P WIFI مذر بورد من اسوس واي فاي

*Model* : PRIME Z890-P WIFI

*News & Updates* : Please visit our GLOBAL website to check and download the latest updates.

*CPU* : Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Refer to https://www.asus.com/support/download-center/ for CPU support list.

Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

*Chipset* : Intel Z890 Chipset

*Memory* : 4 x DIMM slots, max. 192GB, DDR5

Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

DIMM Fit

Supports Intel® Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III(AEMPIII)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

*Graphics* : 1 x DisplayPort

1 x HDMITM port

1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****

• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Supports max. 4K@60Hz as specified in DisplayPort 1.4.

Supports 4K@60Hz as specified in HDMI 2.1.

In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.

In DP alt mode, supports up to UHBR20.

VGA resolution support depends on processors' or graphic cards' resolution.

While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

*Expansion Slots* : Intel® Core™ Ultra Processors (Series 2)*

1 x PCIe 5.0 x16 slot

Intel® Z890 Chipset

2 x PCIe 4.0 x16 slots (support x4 mode)

1 x PCIe 4.0 x16 slot (supports x1 mode)

• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

*Storage* : Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Ultra Processors (Series 2)*

M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel® Z890 Chipset

M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

• Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

*Ethernet* : 1 x Realtek 2.5Gb Ethernet

ASUS LANGuard

*Wireless & Bluetooth* : Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth® v5.4

Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.

Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

*USB* : Rear USB (Total 8 ports)

1 x Thunderbolt™ 4 port (1 x USB Type-C®)

1 x USB 10Gbps port (1 x Type-A)

2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)**

Front USB (Total 9 ports)

1 x USB 10Gbps connector (supports USB Type-C®)

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports**

• USB Type-C® power delivery output: max. 5V/3A

USB_E1 port, USB_E2 port, USB_E3 port and USB_E 4 port share the bandwidth.

USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

*Audio* : Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection,

Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-Bit/192 kHz playback

Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

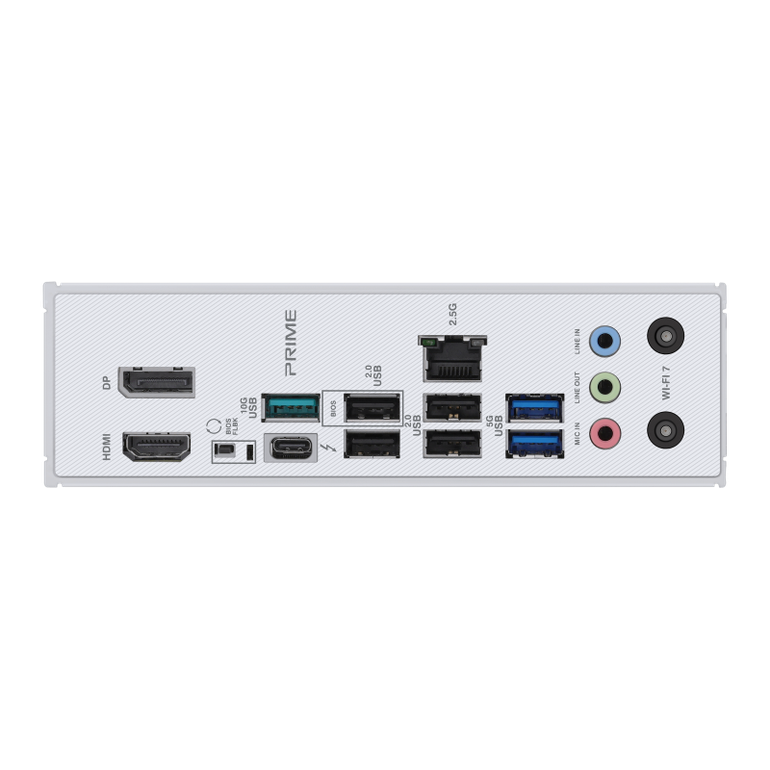

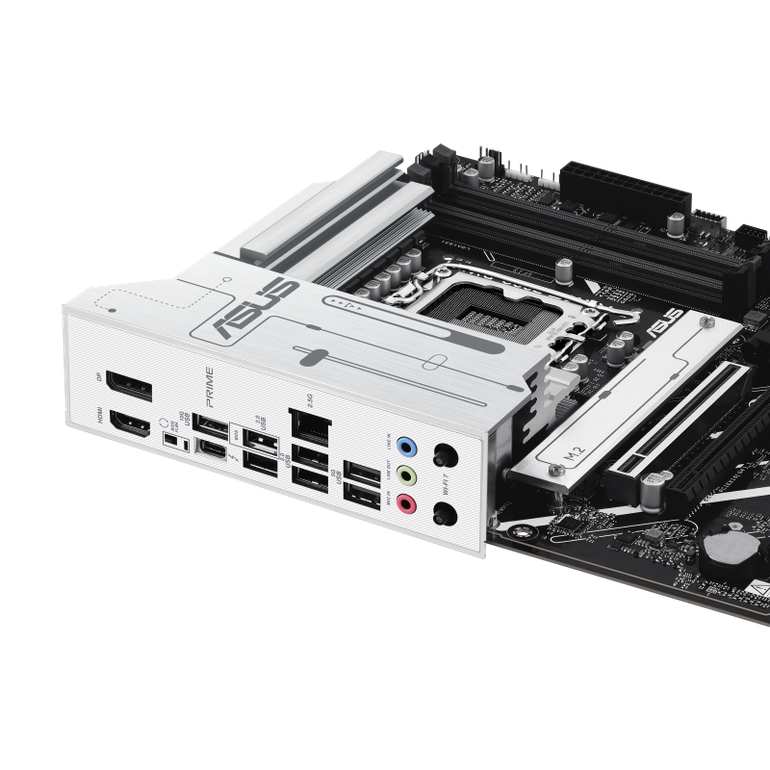

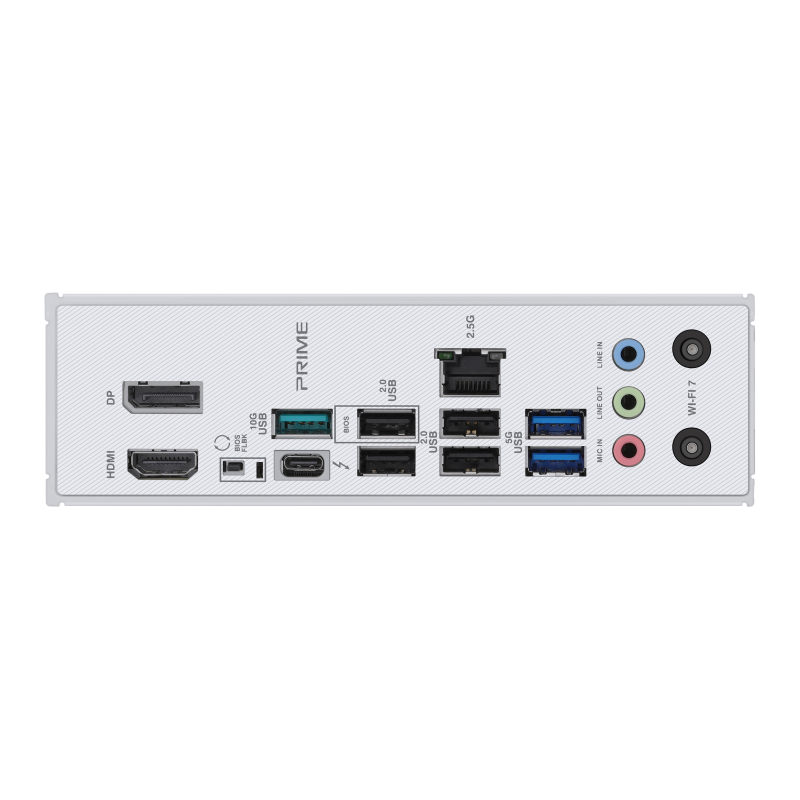

*Back Panel I/O Ports* : 1 x Thunderbolt™ 4 USB Type-C® port

1 x USB 10Gbps port (1 x Type-A)

2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMITM port

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack™ button

*Internal I/O Connectors* : Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 10Gbps connector (supports USB Type-C®)

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin Front Panel System header

1 x Thunderbolt™ (USB4®) header

*Special Features* : ASUS 5X PROTECTION III

• DIGI+ VRM (- Digital power design with DrMOS)

• LANGuard

• Overvoltage Protection

• SafeSlot

• Stainless-Steel Back I/O

ASUS Q-Design

• M.2 Q-Latch

• PCIe Slot Q-Release

• Q-Antenna

• Q-Dashboard

• Q-DIMM

• Q-LED Core

• Q-Slot

ASUS Thermal Solution

• M.2 heatsink

• VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED

• ProCool

• Pre-mounted I/O shield

Aura Sync

• Aura RGB header

• Addressable Gen2 headers

*Software Features* : ASUS Exclusive Software

Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 4 (with AI Cooling II)

• Power Saving

ASUS AI Advisor

ASUS DriverHub

ASUS GlideX

ASUS CPU-Z

TurboV Core

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey

NPU Boost (Intel K-series Processors only)

*BIOS* : 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

*_Manageability_* : WOL by PME, PXE

*Accessories* : Cables

2 x SATA 6Gb/s cables

Miscellaneous

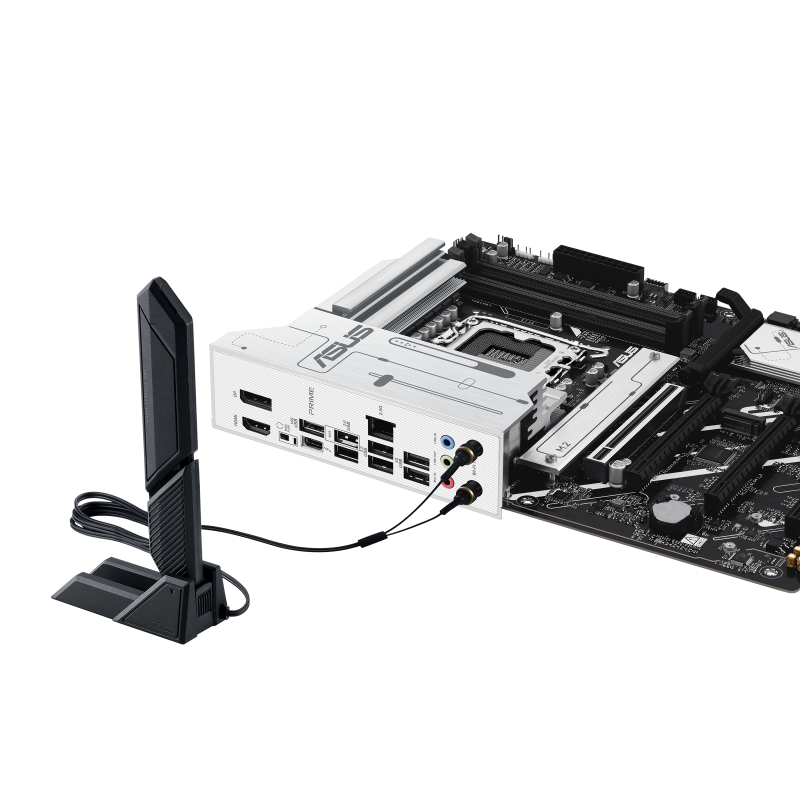

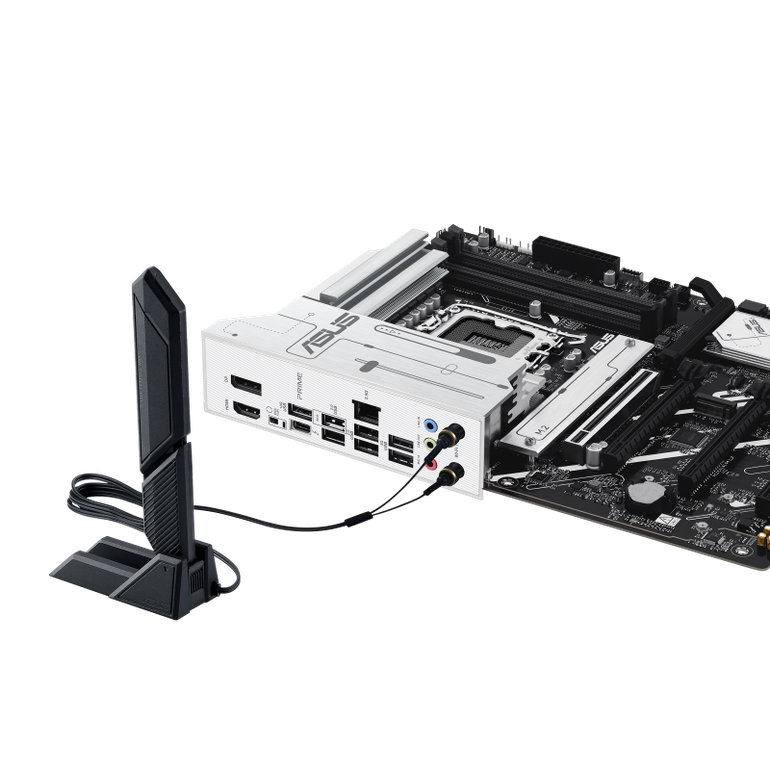

1 x ASUS WiFi Q-Antenna

1 x M.2 rubber package

2 x Screw packages for M.2 SSD

Documentation

1 x Quick start guide

*Operating System* : Windows 11 (22H2 & later)

*Form Factor* : ATX Form Factor

12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
