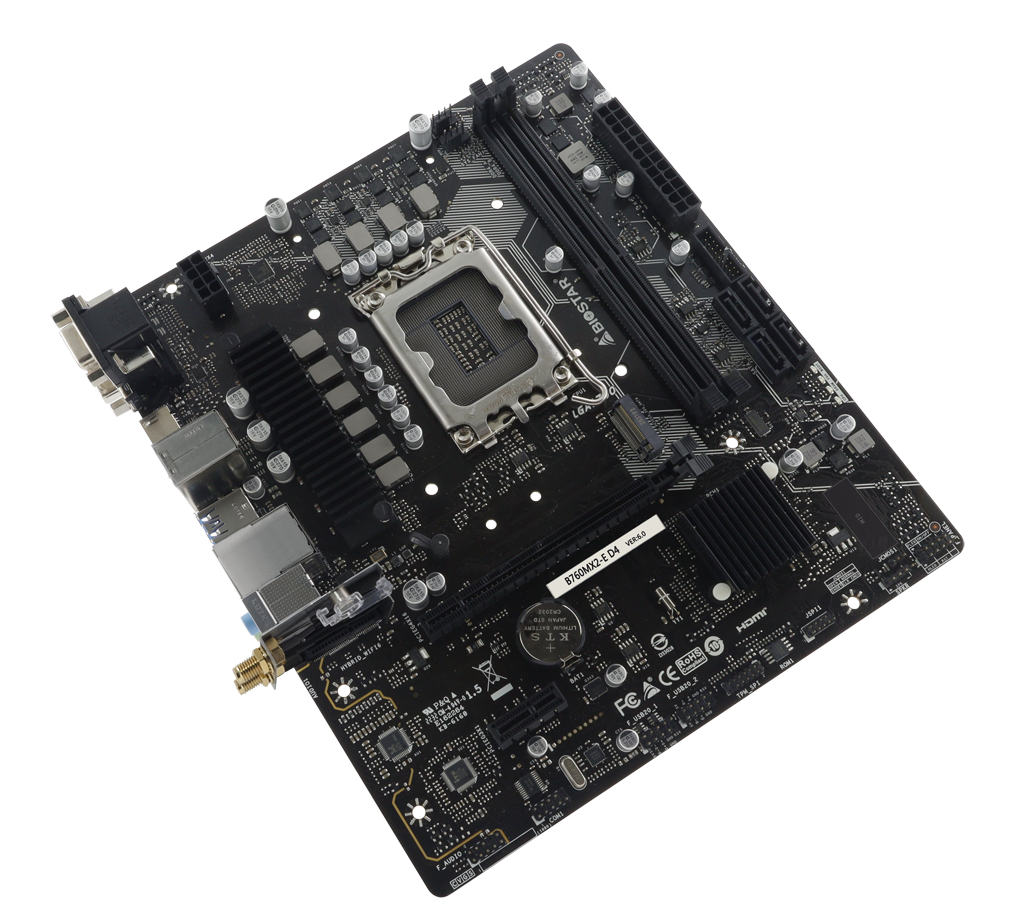

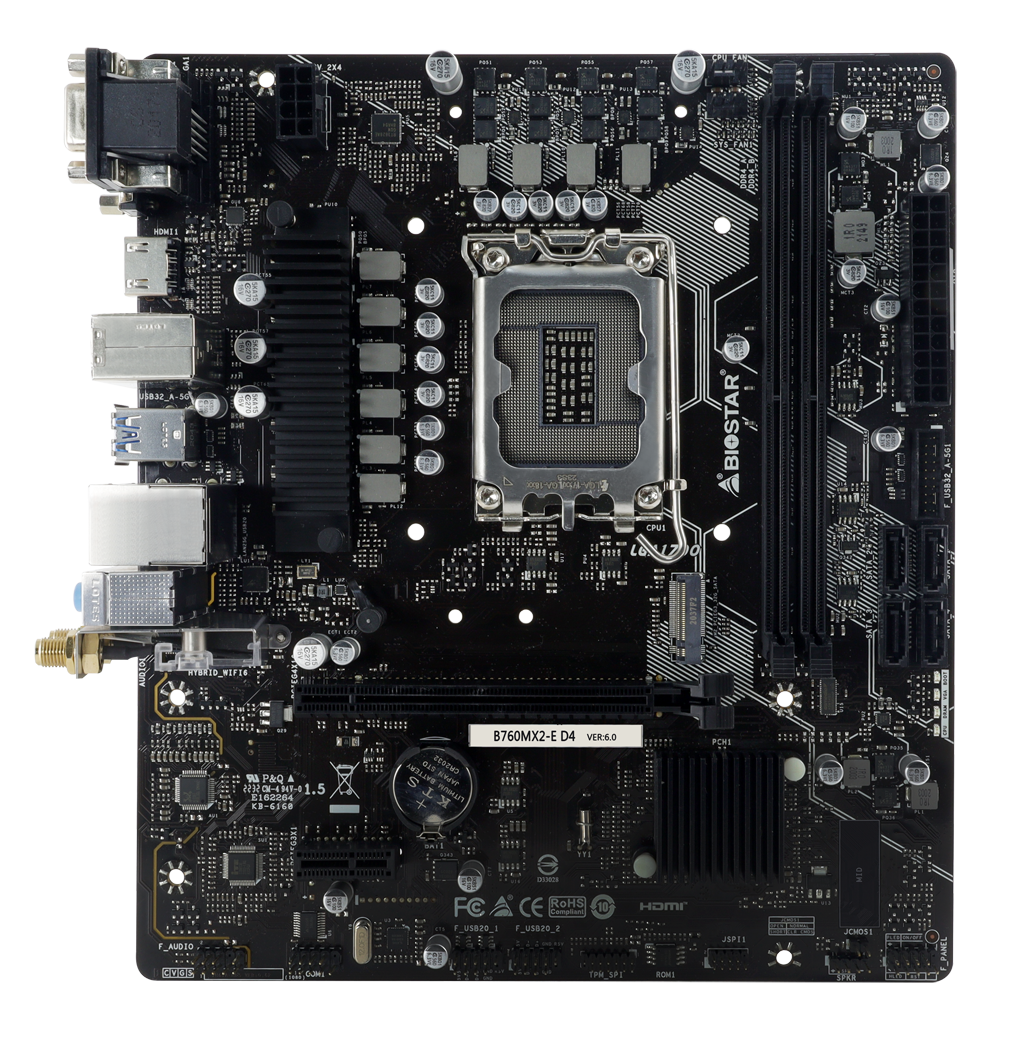

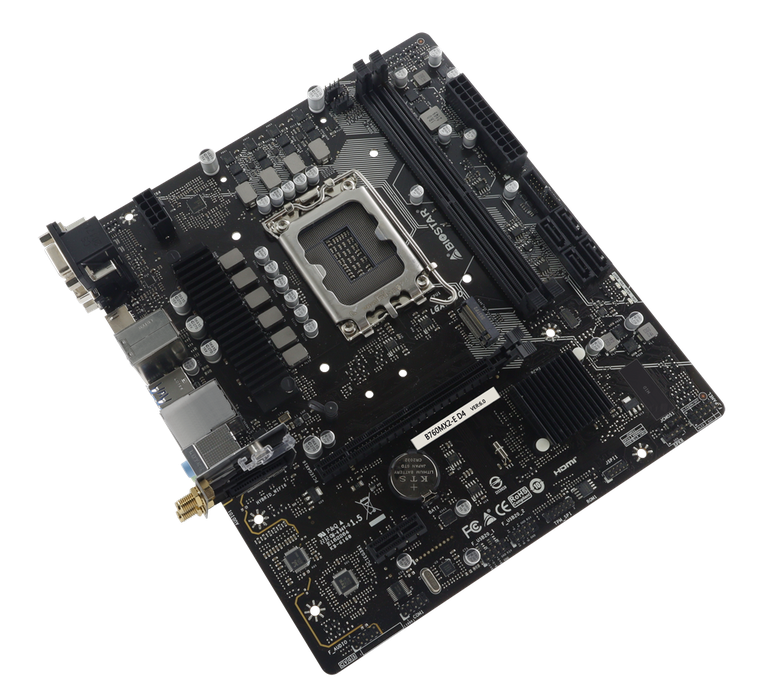

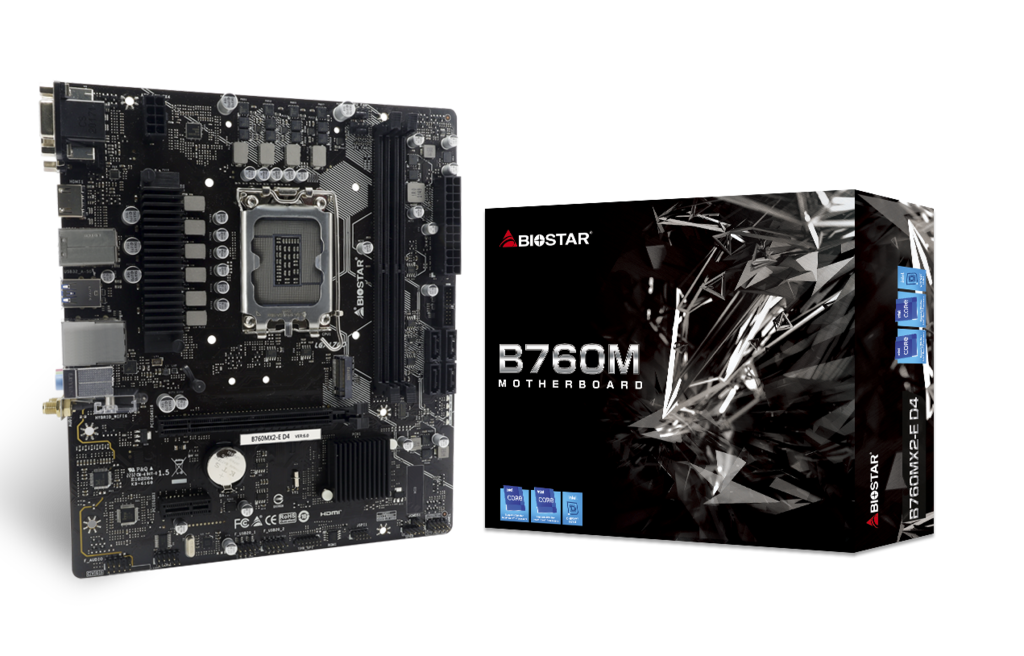

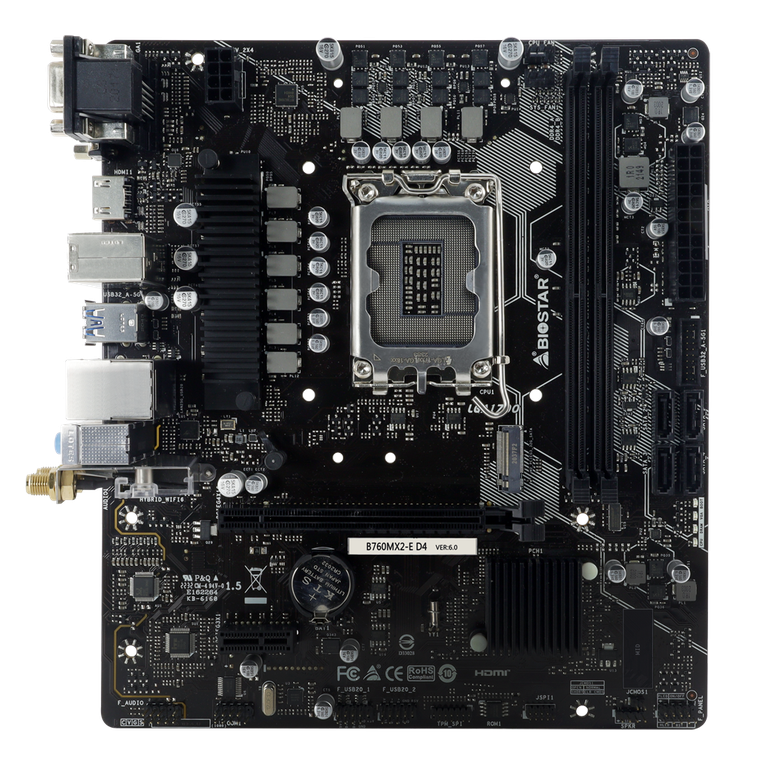

Biostar B760MX2-E DDR4 مذربورد بايوستار

1. Supports 12/ 13/ 14 Generation Intel Core™ Processor

2. Intel B760 single chip architecture

3. Supports 2-DIMM DDR4 4400+(OC) up to 64 GB Memory

4. Supports PCIe 4.0

5. Supports PCIe M.2 4.0 (64Gb/s)

6. Supports HDMI 4K2K

7. Supports USB 3.2 Gen1

8. Support WiFi 6 & 6E module (No WiFi card included)

9. Supports 2.5G LAN

*Specifications*

*Chipset* : Intel B760

*CPU SUPPORT* : Support for 12th/13th/14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package

• Please refer to www.biostar.com.tw for CPU support list.

*MEMORY* : Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC)/ 4400+(OC)

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 4/8/16/32GB DDR4 module

Support Intel® Extreme Memory Profile (XMP) memory modules

• Please refer to www.biostar.com.tw for Memory support list.

*INTEGRATED VIDEO :* Supports DX12 / Supports HDCP

*STORAGE* : Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports

Intel B760 Chipset

1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):

Supports M.2 Type 2242 /2260 /2280 SSD module

Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA SSD

4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology

• Specifications vary by CPU types

*LAN* : RTL8125B

10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

*AUDIO CODEC* : ALC897

7.1 Channels, High Definition Audio

*USB* : 4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers)

8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers)

*EXPANSION SLOT* : INTEL 12th/13th/14th Processors

1 x PCIe 4.0 x16 Slot (x16 mode)

INTEL B760 Chipset

1 x PCIe 3.0 x1 Slot

• Specifications vary by CPU types

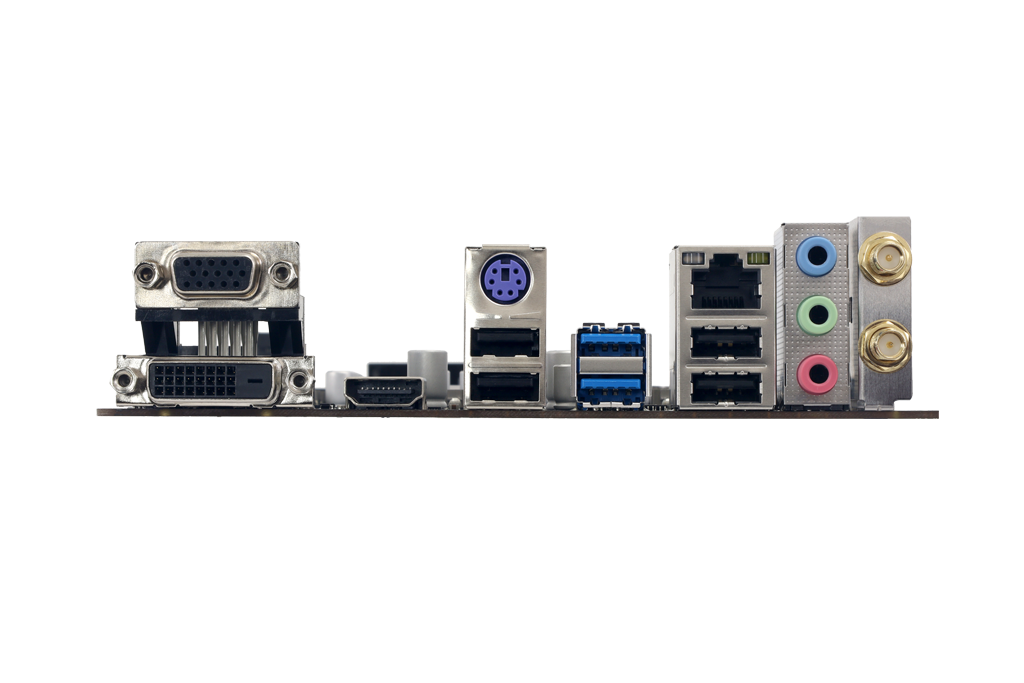

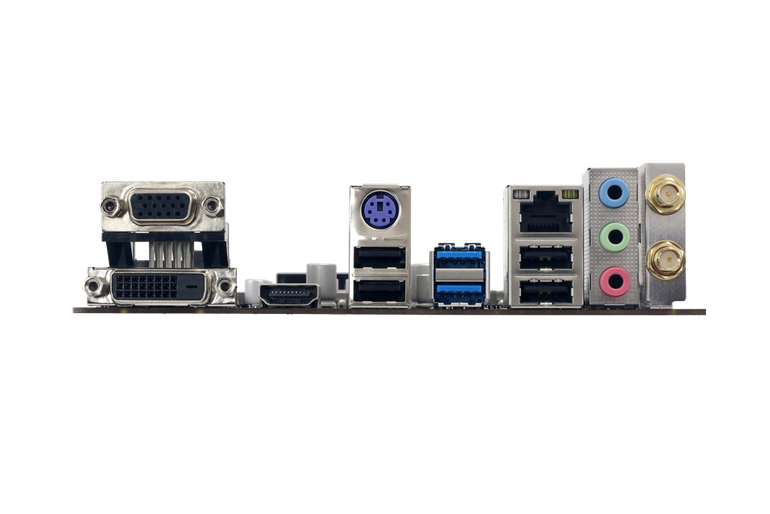

*REAR I/O* : 1 x WIFI Antenna Port

1 x PS/2 Keyboard/ Mouse Port

1 x HDMI

1 x VGA+DVI Port

2 x USB 3.2 (Gen1) port

4 x USB 2.0 port

1 x LAN port

3 x Audio Jack

*INTERNAL I/O* : 4 x SATA III Connector (6Gb/s)

1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi

2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Internal Stereo Speaker Header

1 x Clear CMOS Header

1 x COM Port Header

1 x TPM Header

• M.2 (E key) Wi-Fi card is not provided

*H/W MONITORING* : CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

CPU/DDR Voltage Monitoring

*DIMENSION* : Micro ATX Form Factor Dimension: 23.6cm x 20.8cm ( W x L )

*OS SUPPORT* : Supports Windows 10 (64bit) / 11(64bit)

※Biostar reserves the right to add or remove support for any OS with or without notice.

*BUNDLE SOFTWARE* : BullGuard

*ACCESSORIES* : 2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide

1 x M.2 Anchor

1 x WiFi antenna accessories
