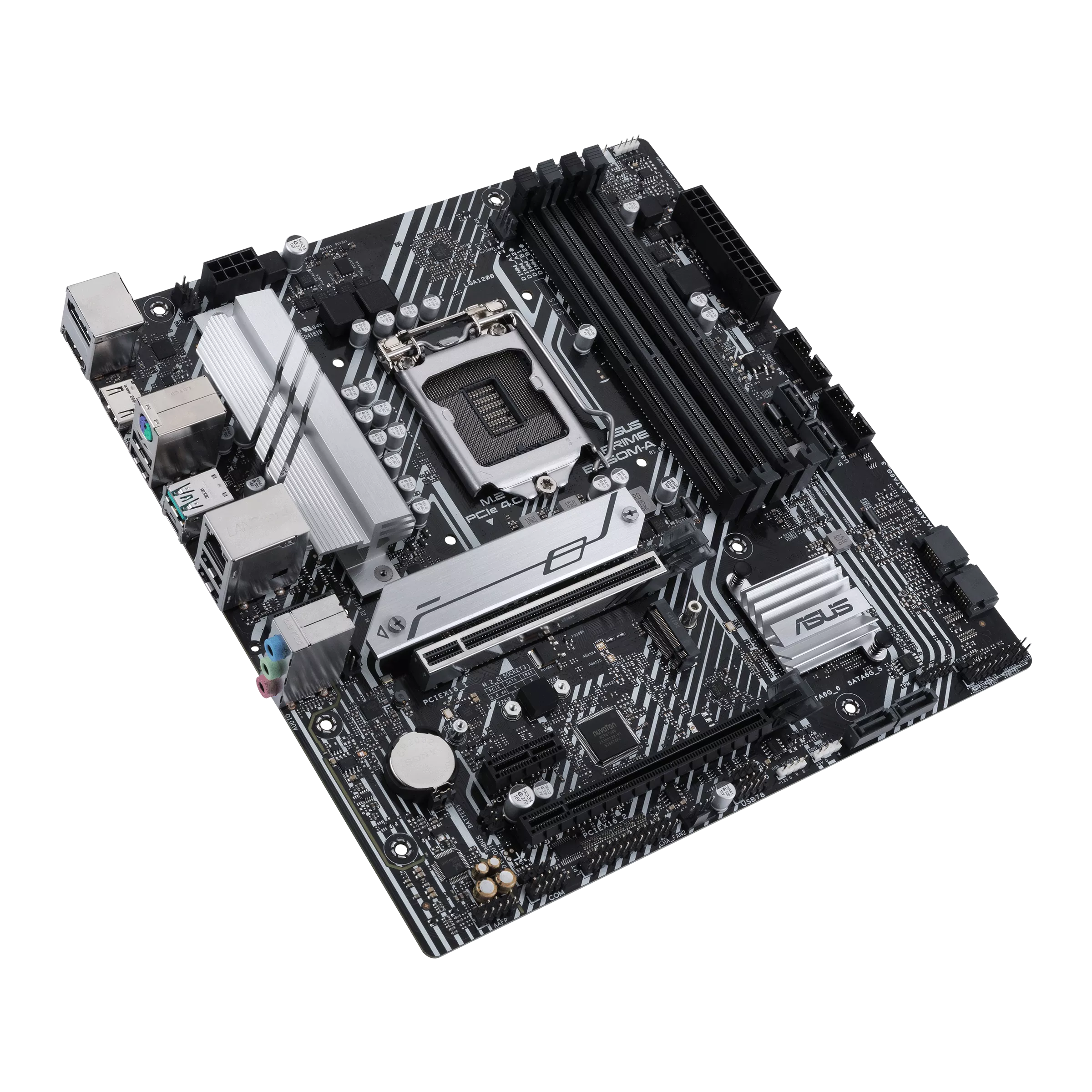

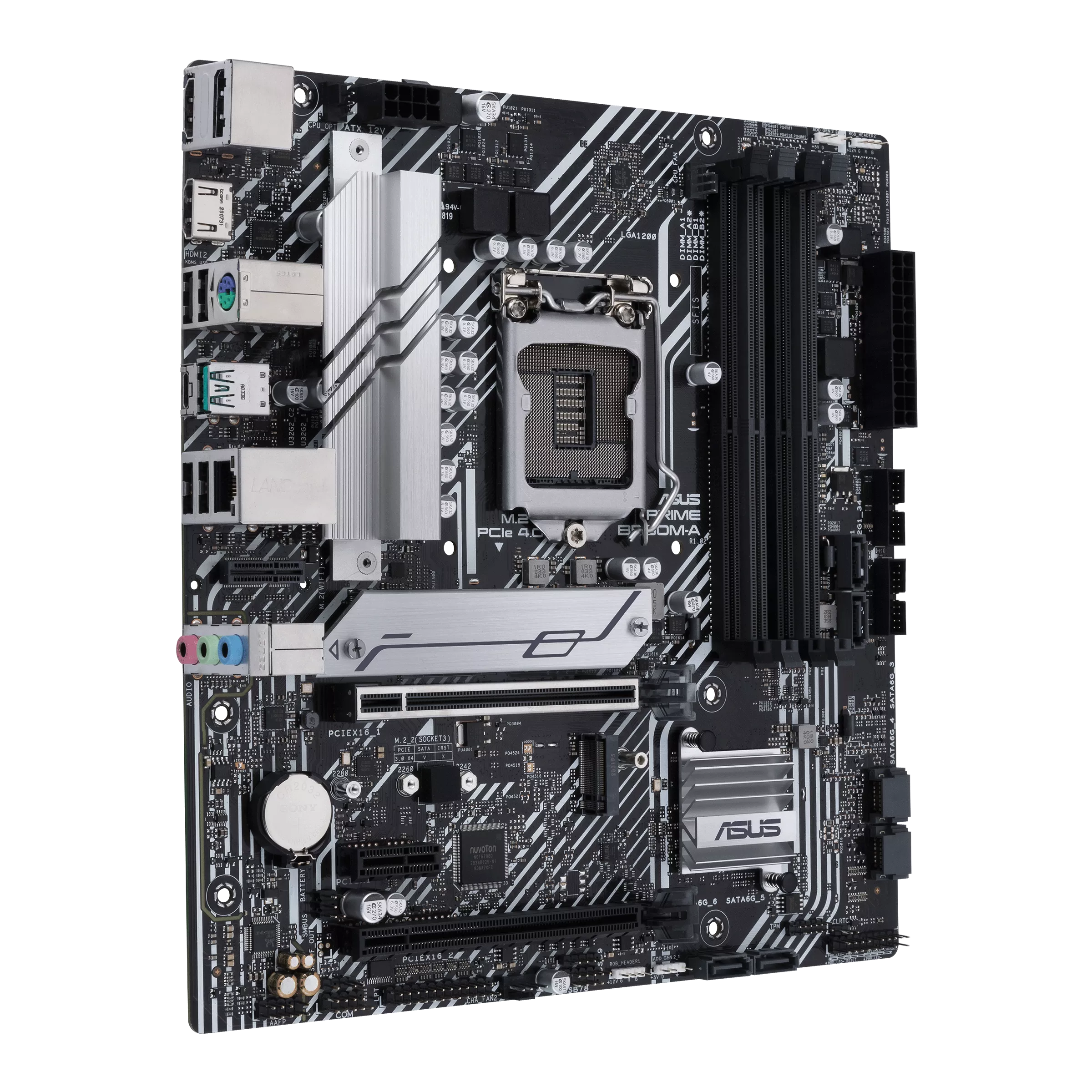

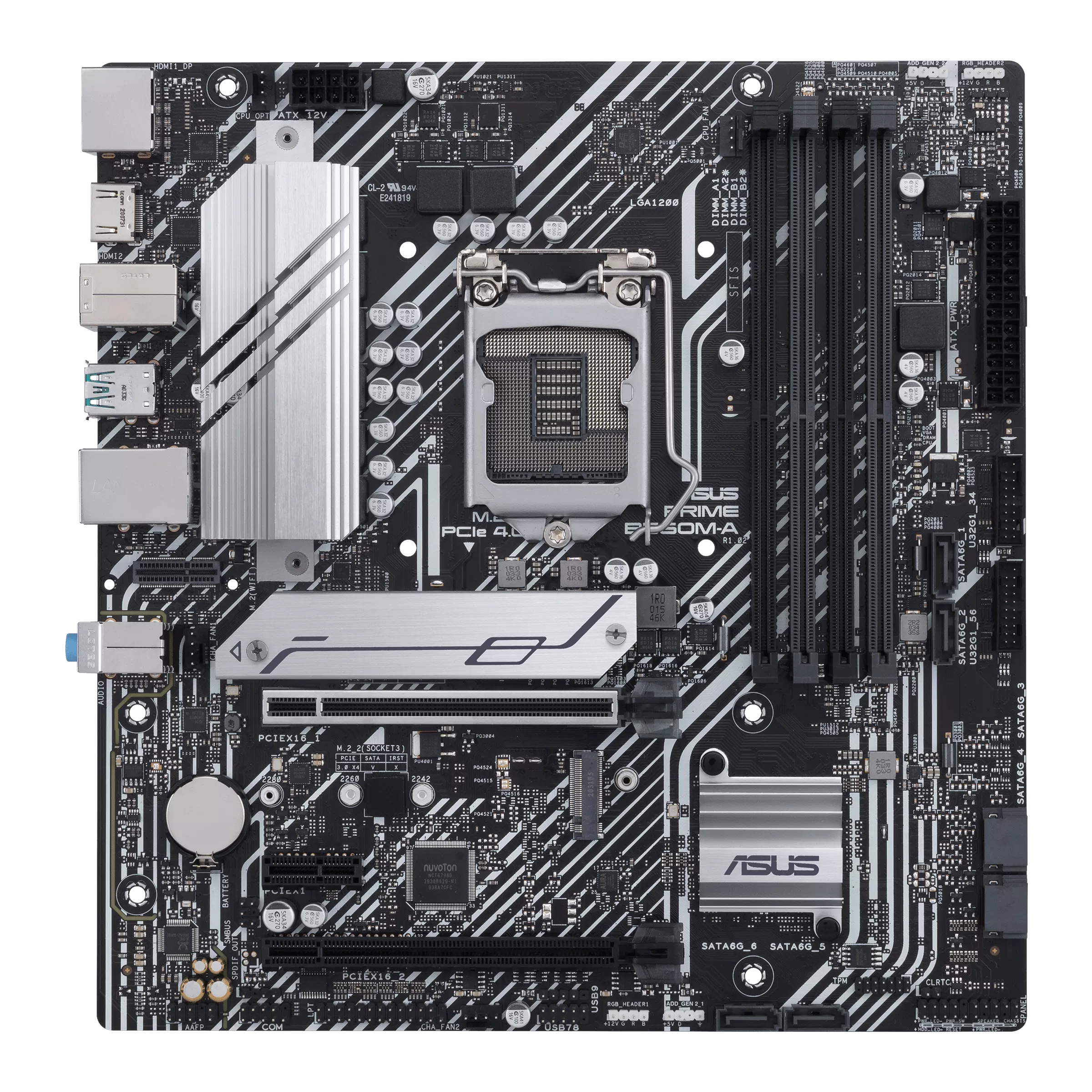

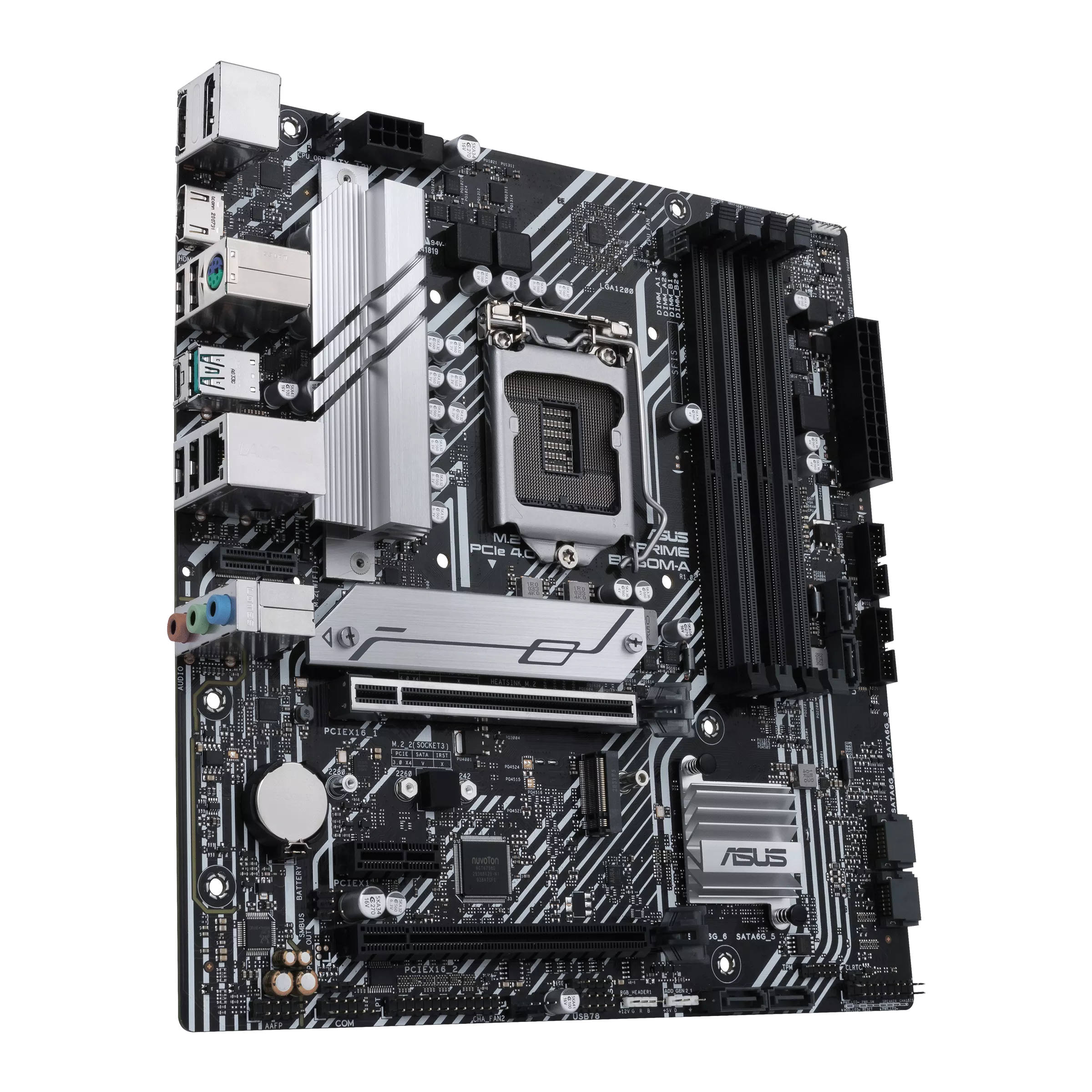

ASUS PRIME B560M-A MOTHERBOARD مذربورد اسوس برايم بي٥٦٠ ام اي

مذربورد اسوس B560M-A ، تم تصميمها خصيصًا لتلبية احتياجات المستخدمين الذين يبحثون عن أداء قوي وموثوقية عالية في بناء أجهزة الكمبيوتر الخاصة بهم.

سواء كنت من محبي تجميع الحواسيب، أو من محترفي تكنولوجيا المعلومات، أو حتى من عشاق الألعاب، فإن مذربورد اسوس B560M-A هي أفضل اختيار لك.

مواصفاتها:

CPU:

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (Dependent on CPU type)

Chipset: B560

Memory:

DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Graphics:

Graphics specifications may vary between CPU types

Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz

Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz

Expansion Slots:

Intel® 11th &10th Gen Processors:

1 x PCIe 4.0/3.0 x16 slot(s)

Intel® B560 Chipset:

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slots

Storage:

Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

M.2_1 slot (Key M) for Intel® 11th Gen processors only supports PCIe 4.0 x4 mode

M.2_2 slot (Key M) supports PCIe 3.0 x4 & SATA modes

SATA_2 will be disabled when M.2_2 slot is operating in SATA mode

Ethernet:

1 x Intel® 1Gb Ethernet

ASUS LANGuard

USB:

Rear USB: Total 6 ports (2 x USB 3.2 Gen 2, 4 x USB 2.0)

Front USB: Total 7 ports (including additional headers)

Audio:

Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Shielding, Premium Japanese audio capacitors

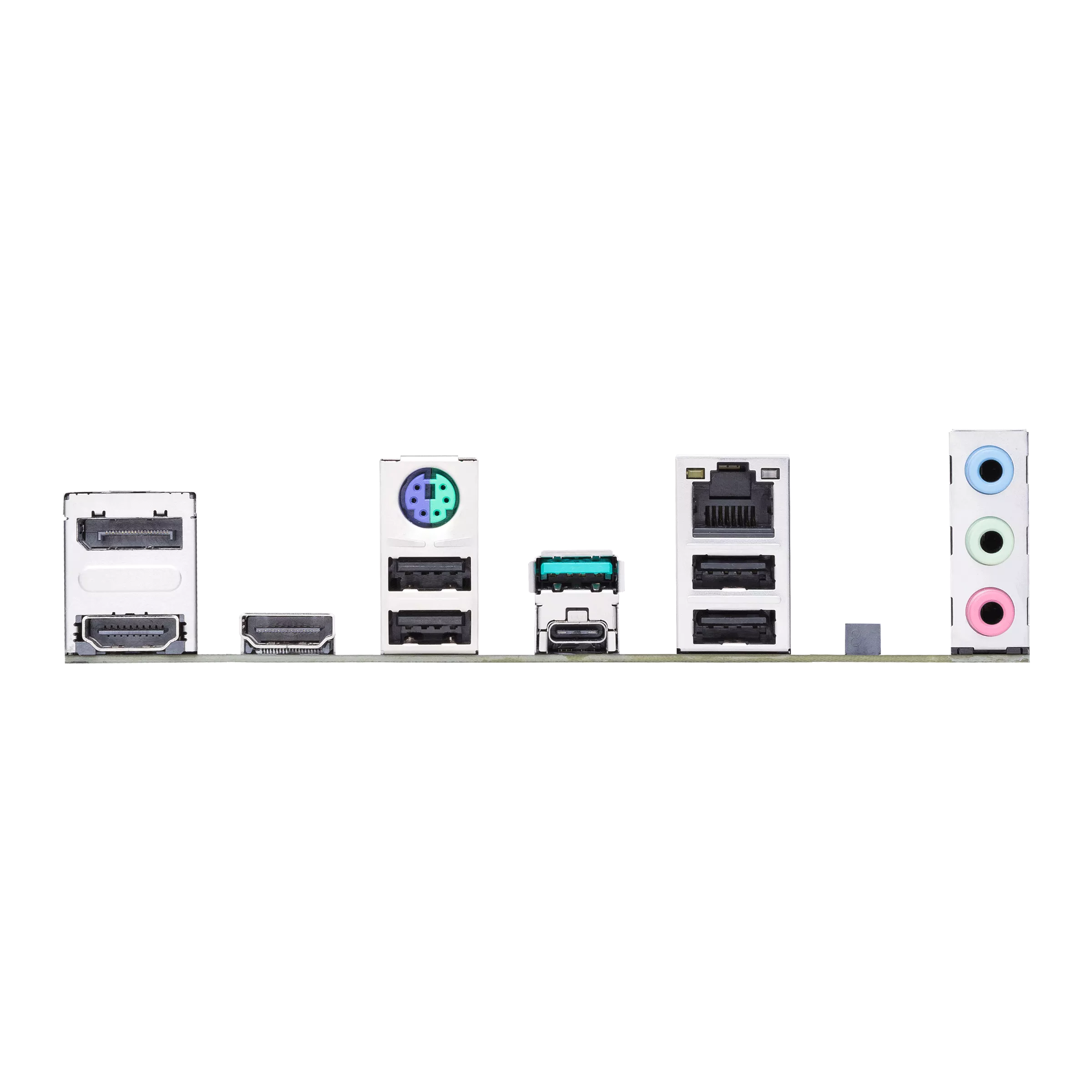

Back Panel I/O Ports:

Includes USB ports, DisplayPort, HDMI™ port, Ethernet port, Audio jacks, PS/2 Keyboard/Mouse combo port

Internal I/O Connectors:

Includes fan headers, power connectors, storage connectors, USB headers, Aura RGB headers, Clear CMOS header, Front Panel Audio header, etc.

Special Features:

ASUS

5X PROTECTION III:

DIGI+ VRM

Enhanced DRAM Overcurrent Protection

ESD Guards

LANGuard

Overvoltage Protection

SafeSlot Core+

Stainless-Steel Back I/O

ASUS Q-Design:

Q-DIMM

Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

Q-Slot

ASUS Thermal Solution:

Flexible M.2 heatsink

VRM heatsink design

AURA Sync:

AURA RGB header(s)

Addressable Gen 2 RGB header(s)

Software Features:

ASUS Exclusive Software:

Armoury Crate

AURA Creator

AURA Sync

AI Suite 3

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

EZ update

ASUS CPU-Z

AI Charger

DAEMON Tools

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS:

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PME, PXE

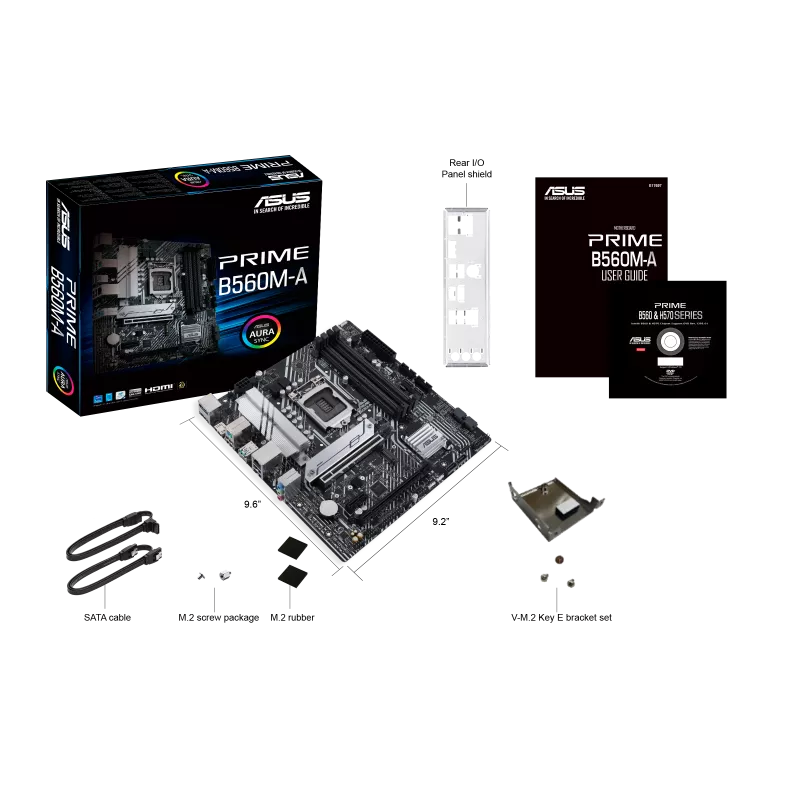

Accessories:

Includes cables, M.2 Rubber Package, M.2 SSD screw package, Vertical M.2 Key E bracket set, Installation Media, Documentation

Form Factor: microATX (24.4cm x 23.4cm)

بفضل دعمها لمعالجات Intel® Core™ من الجيل الحادي عشر، وحلول التبريد المتقدمة، وخيارات الاتصال السريعة، تعتبر مذربورد اسوس B560M-A الخيار الأمثل لبناء أجهزة الكمبيوتر الخاصة بالألعاب أو أجهزة العمل الخاصة بالمحترفين.

اطلبها الآن من متجر GNM لتحقيق أحلامك في بناء حاسوب قوي بأداء ممتاز.
